IGLO EXPERT PSK

Slim design. Strong performance.

Uszczelki PVC-P

Uw = 0,69 W/(m²K)*

THERMAL TRANSMITTANCE

NUMBER OF CHAMBERS

70 mm

INSTALLATION DEPTH

24-54 mm

Glass packages

Uszczelki PVC-P

THERMAL TRANSMITTANCE

Uw = 0,69 W/(m²K)*

NUMBER OF CHAMBERS

INSTALLATION DEPTH

70 mm

Glass packages

24-54 mm

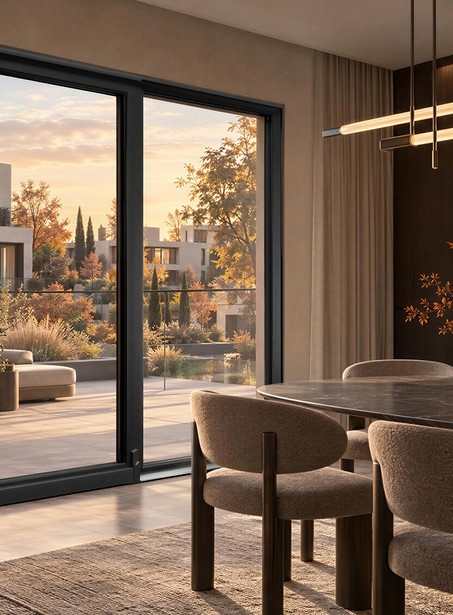

IGLO EXPERT PSK

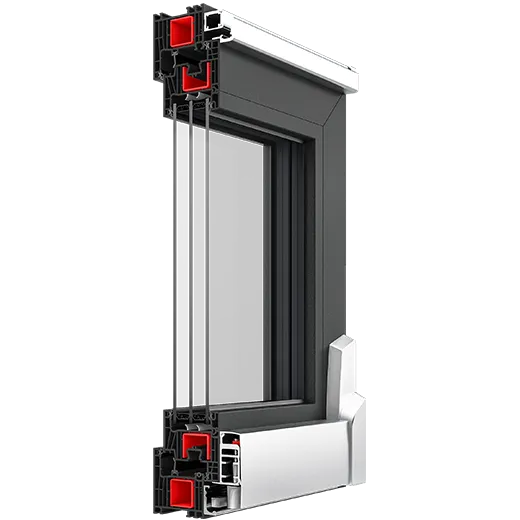

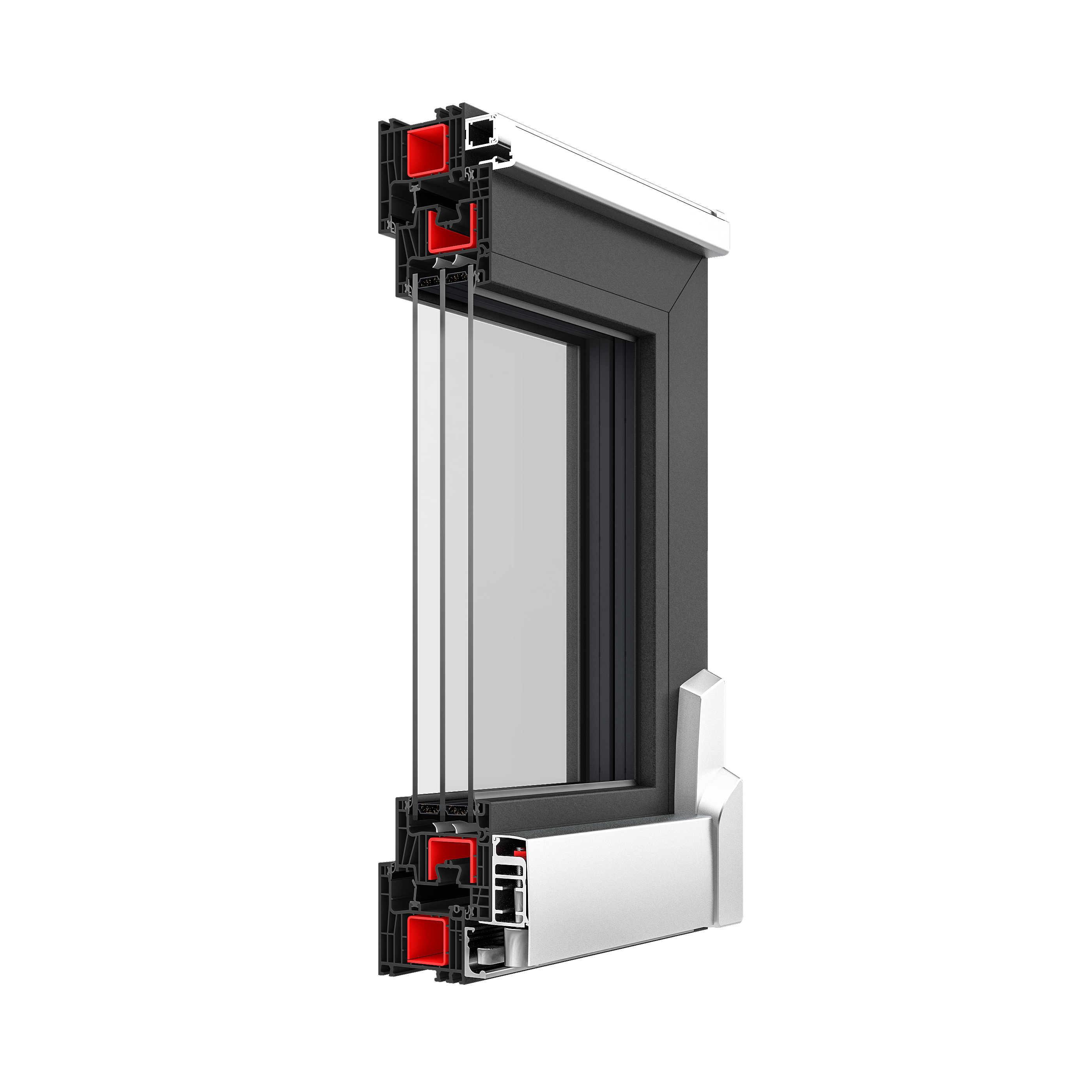

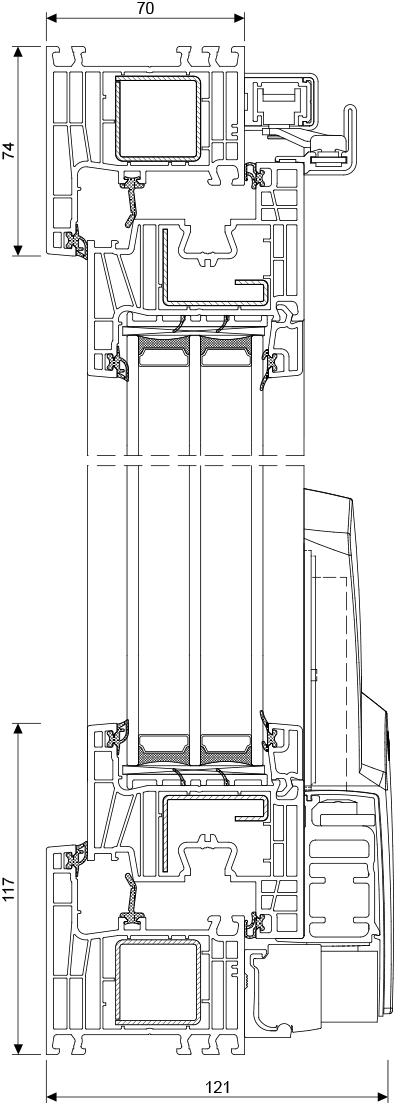

IGLO EXPERT PSK is a modern PVC tilt-and-slide patio door system that combines slim design with high performance. The six-chamber profile construction, carefully designed partition geometry and triple sealing system provide very good insulation, ease of use and effective noise protection. A combined frame and sash sightline of just 117 mm also allows for a larger glazed area, bringing more natural light into the interior. Iglo Expert PSK features an installation depth of 77 mm for the sash and 70 mm for the frame.

Standard equipment:

triple-glazed unit with Ug = 0.5 W/(m²K)
perimeter and glazing gaskets in black or grey
4 anti-burglary locking points
glazing units with thicknesses of 24–54 mm
galvanised steel spacer or Swisspacer Ultimate warm-edge plastic spacer
microventilation
aluminium handle
perimeter and glazing gaskets in black or grey
profile in white, brown or anthracite
gasket filling the lower hardware groove
steel reinforcement of the frame and sash (2 mm for the sash)

Optional equipment:

full frame reinforcement
wide fixed mullion measuring 117 mm

Downloads

PVC WINDOWS

Catalogue

PSK WINDOWS PSK TERRACE SYSTEMS

Brochure

PVC terrace system colour range

Choose the colour that suits you Over 30 veneer colours to choose from.

White FX
915205-168

White Sand U-Matt
9152

Crown Platinum
9.1293001-195

Creamy
1137905-167

Pyrite
02.12.17.000001-195

Sheffield Oak Light
F456-3081

Natural Oak
3118076-167

Light Grey
725105-167

Grey
715505-167

Concrete Grey
702305-167

Quartz Grey
703905-167

Quartz Grey Smooth
703905-097

Basalt Grey
701205-167

Basalt Grey Smooth
701205-097

Iron Glimmer Slate
(DB703) 1.0065002-097

Slate Grey Smooth
(7015) 02.11.71.000040-097

Graphite Sand
MAT 436-6023

Anthracite
701605-167

Anthracite Smooth
701605-097

Anthracite Ulti-Matt
02.20.71.000001-504700-047

Jet black
Jet black

Black Ulti-Matt
02.20.01.000002-504700-047

Golden Oak
2178001-167

Turner Oak
F470-3001

Turner Oak Toffee
470-3004

Turner Oak Walnut
470-9036

Winchester
49240015-148

Oregon
2115008-167

Douglas
3152009-167

Nut
2178007-167

Dark Oak
2052089-167

Palisander
851805-167

Macore
3162002-167

Mahogany
2097013-167

Chocolate Brown
887505-167

Shine deep bronze
Mattex CC 470-1029

moss green
61

Dark Green
612505-167

Dark Red
308105-167

Brylantowo Niebieski
500705-167

Steel Blue
1515005

We make every effort to ensure that the images shown reproduce the actual colours of the products as accurately as possible. Please note, however, that due to individual monitor and graphics card settings, the displayed colours may differ from the originals.

Choose colour:

White FX

915205-168

Glass

With over 40 years’ experience in the manufacture of insulating glass units, DRUTEX offers a very wide range of glazing options for your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.

Additional options

Muntin bars

Muntin bars will add classic and timeless style to your windows and doors.

See all

Reliable fittings

MACO fittings are the perfect solution in terms of security and functionality of windows and doors made of PVC, aluminium and wood.

See all

Sandblasted glass

Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.

See all

Spacers

Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.

See all

Compare products

Technical data	IGLO EXPERT PSK	IGLO SLIDE	IGLO LIGHT PSK	IGLO ENERGY PSK	IGLO5 PSK
Number of chambers	6	3	5	7	5
Installation depth	70 mm	82 mm	70 mm	70 mm	70 mm
Number of gaskets	3		2	3	2
Thermal transmittance	Uw = 0,69 W/(m²K) *for a structure measuring 2,700 x 2,300 mm with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4		Uw = 0,84 W/(m²K) *for a structure measuring 2,700 x 2,300 mm with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4	Uw = 0,65 W/(m²K) *for a structure measuring 2,700 x 2,300 mm with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4	Uw = 0,81 W/(m²K)* *for a structure measuring 2,700 x 2,300 mm with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4
Glass packages	24-54 mm	24 mm / Ug = 1,1 W/(m²K)	24-40 mm	24-48 mm	24-40 mm
