IDEAL NEO MD
More than modern design
IDEAL NEO MD
Slim and symmetrical profiles refer to current design trends and give lightness and elegance to the windows. Extremely narrow profile combinations mean even more light in the rooms. An attractive solution for both new built and renovation.
B class profile.
.Standard equipment:
- double-chamber glazing package Ug = 0,5 W/(m2K)
- Swisspacer Ultimate plastic warm frame - as a free elective option
- 4 anti-theft strikers according to the size of the sash and the hardware system
- microventilation
- aluminium window handle
- handle misplacement locking mechanism
- perimeter, glazing and central gaskets in black or grey
- filling of the lower hardware groove
PVC window colour range
701605-167
701605-097
02.20.71.000001-504700-047
701205-167
701205-097
702305-167
FX-915205-168
S30.30.70.0057.001
887505-167
308105-167
2052089-167
612505-167
9.1293001-195
02.20.01.000002-504700-047
F456-3081
3118076-167
3152009-167
725105-167
Jet black
1137905-167
(DB703) 1.0065002-097
(7015) 02.11.71.000040-097
2097013-167
3162002-167
2115008-167
Meranthi
Meranthi
02.12.17.000001-195
715505-167
2178001-167
703905-167
703905-097
F470-3001
49240015-148
61
Glass
Extras
Handles
Compare products

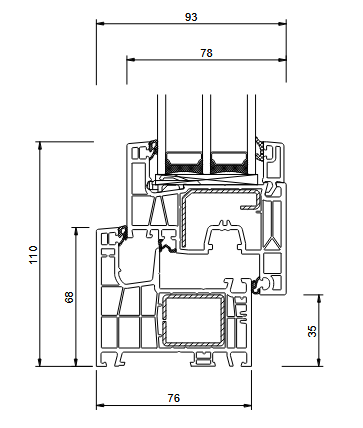

Technical data | IDEAL NEO MD | IDEAL NEO AD | IGLO EDGE | IGLO Energy | IGLO Energy Classic |
---|---|---|---|---|---|
Number of chambers | 6 | 5/6 | 7 | 7 | 7 |
Installation depth | 76 mm | 76 mm | 82 mm | 82 mm | 82 mm |
Number of gaskets | 3 | 2 | 3 | 3 | 3 |
Thermal transmittance | Uw = 0,76 W/(m2K)* *For a window measuring 1,230x1,480 mm, with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,79 W/(m2K)* *For a window measuring 1,230x1,480 mm, with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,66 W/(m2K)* | Uw = 0,71 W/(m2K)* *For a window measuring 1,230x1,480 mm, Uw = 0.71 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,73 W/(m2K)* |
Glass packages | 24-54 mm | 24-54 mm | 48-58 mm | 24-48 mm | 24-52 mm |
Sound insulation | dB = 36 | dB = 36 | — | dB = 37-46 | dB = 36-42 |
