Iglo EXT
Modern PVC balcony windows and doors that open outwards
Iglo EXT

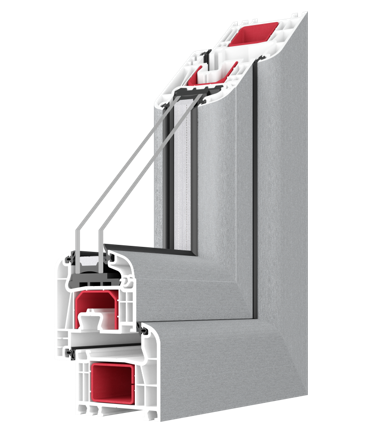

Balcony windows and doors that open outwards stand out for their modern design and excellent thermal insulation performance.
As standard, these windows have hidden fittings (invisible when closed), while balcony doors have door (surface) fittings. The Iglo EXT window and door system is ideal for those looking for modern design and high aesthetic values.AS STANDARD:
- double-chamber glazing package Ug=1,1W/(m2K)
- concealed MACO Multi-Power fittings in the window (invisible hinges when the window is closed), door fittings on balcony windows
- or balcony doors, double roller DM20 bolt for full (airtight) locking or locking with trickle ventilation
- aluminium handle with double-sided insert
- 2-glazed (1-chamber) units infilled with argon gas with Ug = 1.1 W/(m²K)
- Swisspacer Ultimate plastic warm frame - as a free elective option
- 2 EPDM gaskets in black (external and internal)
- gasket filling the lower fittings groove
- 1.5 mm full (closed), steel, „c”-shaped frame and sash reinforcement (2 mm for balcony door sashes)
- profile core in white
- 5-chamber PVC under-sill trim with gasket
Downloads
PVC window colour range
715505-167
701605-167
3118076-167
2115008-167
3152009-167
2178001-167
2097013-167
2178007-167
2052089-167
3162002-167
49240015-148
701205-167
703905-097
701205-097
701605-097
702305-167
F456-3081
308105-167
851805-167
9.1293001-195
02.20.71.000001-504700-047
725105-167
703905-167
(7015) 02.11.71.000040-097
02.20.01.000002-504700-047
(DB703) 1.0065002-097
915205-168
1137905-167
612505-167
887505-167
1600505-167
F470-3001
Jet black
02.12.17.000001-195
Glass
Additional options
Sizes: 27/45/65 mm
Sizes: 8/18/26/45 mm
Compare products
Technical data | Iglo EXT | IGLO ENERGY ALUCOVER | IGLO Light | IGLO EDGE | IGLO Energy | Iglo Premier | IGLO Energy Classic | IGLO 5 | IGLO 5 Classic |
---|---|---|---|---|---|---|---|---|---|
Number of chambers | 5 | 7 | 5 | 7 | 7 | 5 | 7 | 5 | 5 |
Installation depth | 70 mm | 70 mm | 82 mm | 82 mm | 70 mm | 82 mm | 70 mm | 70 mm | |
Number of gaskets | 2 | 3 | 2 | 3 | 3 | 2 | 3 | 2 | 2 |
Thermal transmittance | Uw = 0,89 W/(m2K)* | Uw = 0,76 W/(m2K)* *For a window measuring 1,230x1,480 mm – calculation method = 0.76 W/(m2K) with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 1,0 W/(m2K)* | Uw = 0,66 W/(m2K)* | Uw = 0,79 W/(m2K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.79 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,89* W/(m2K)* *For a window measuring 1,230x1,480 mm – calculation method = 0.89 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,81 W/(m2K)* | Uw = 0,94 W/(m2K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.94 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,94 W/(m2K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.94 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar. |
Glass packages | 24-40 mm | 24-48 mm | 24-40 mm | 48-58 mm | 24-48 mm | 24-40 mm | 24-52 mm | 24-40 mm | 24-40 mm |
Sound insulation | — | - | dB = 34 | — | dB = 37-46 | — | dB = 36-42 | dB = 36-44 | dB = 34-42 |
