SOFTLINE 68, 78, 88

Timeless beauty of wood

68 Ud = 1,1* / 78 Ud = 0,9** / 88 Ud = 0,85***

THERMAL TRANSMITTANCE

68/78/88 mm

INSTALLATION DEPTH

Gaskets

THERMAL TRANSMITTANCE

68 Ud = 1,1* / 78 Ud = 0,9** / 88 Ud = 0,85***

INSTALLATION DEPTH

68/78/88 mm

Gaskets

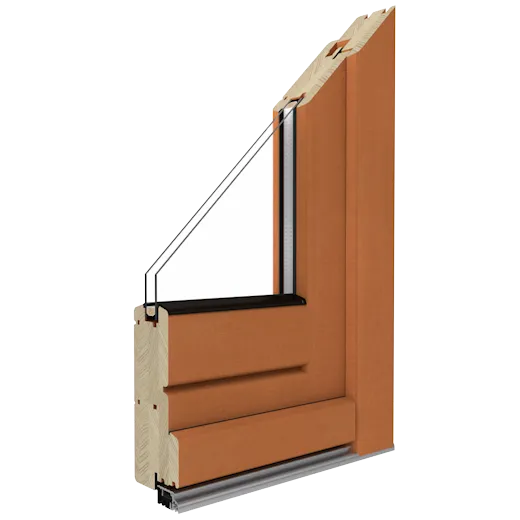

SOFTLINE 68, 78, 88

Wooden door made of highest quality and laminated (three layers) wood, thickness 68 mm, which is the foundation of classic design, high durability and stability of the door and the highest level of quality. However, Drutex wooden doors are not only about elegant design and refined appearance but also about excellent insulation. The door comes with an aluminium threshold with a thermal break as standard to contribute to the thermal insulation value of the entire system. As standard:

3-point espagnolette
3 roller hinges
3 gaskets
Ug from 0,5 to 1,1 W/(m2K) glass
threshold with a thermal break
azure and opaque paints
aluminium handle
mounting insert

Downloads

EXTERIOR DOORS

Catalogue

WOODEN AND WOOD-ALUMINIUM WINDOWS

Brochure

Pobierz

Door structures

Modern architecture often requires from us to design door structures with different dimensions, shapes, specifications, etc. They determine not only the look of the door but also its functional properties, stability, and durability. The spacers used in Drutex doors help significantly increase door rigidity and at the same time ensure a unique, custom design.

Wooden door colour range

Choose your colour from a dozen colours of opaque paints (covering the entire wood structure) and stain paints for the wooden part of the door

White Softline

Bright oak
Pine

Bright oak
Meranthi

Bright oak
Pine

Dark Oak
Pine

Dark Oak
Meranti

Teak
Meranthi

Teak
Pine

Maghoni
Pine

Maghoni
Meranthi

Palisander
Pine

Palisander
Meranthi

Nut
Pine

Nut
Meranthi

Bright oak
Pine

Choose colour::

White Softline

Glass

With over 40 years’ experience in the manufacture of insulating glass units, DRUTEX offers a very wide range of glazing options for your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.

Additional options

Door thresholds

An extremely important element of all entrance doors is the threshold. It determines not only the energy-saving qualities of the system but also the comfort of use.

See all

Mounting accessories

Here you will find the products necessary for proper installation of joinery.

See all

Muntin bars

Muntin bars will add classic and timeless style to your windows and doors.

See all

Reliable fittings

MACO fittings are the perfect solution in terms of security and functionality of windows and doors made of PVC, aluminium and wood.

See all

Sandblasted glass

Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.

See all

Spacers

Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.

See all

Door handles and pull bars

Our handles for windows, doors and terrace systems made of PVC, aluminium and wood are distinguished by their high aesthetics, functionality and durability. Thanks to various colour options, they can be perfectly matched colour of the windows, doors, or the colour scheme of the building.

Door knob (white)

Door knob (brown)

Door knob (olive)

Door knob (silver)

door handle 30A (stainless steel)

door handle (white)

door handle (olive)

door handle for roller shutter (white)

door handle for roller shutter (brown)

door handle for roller shutter (silver)

door handle (silver)

M2 door rail (white)

Z42 door rail

Z43 door rail

M2 door rail (brown)

M2 door rail (RAL 9006)

P45 door rail (stainless steel)

Q45R door rail (stainless steel)

Z1 door rail (stainless steel)

Compare products

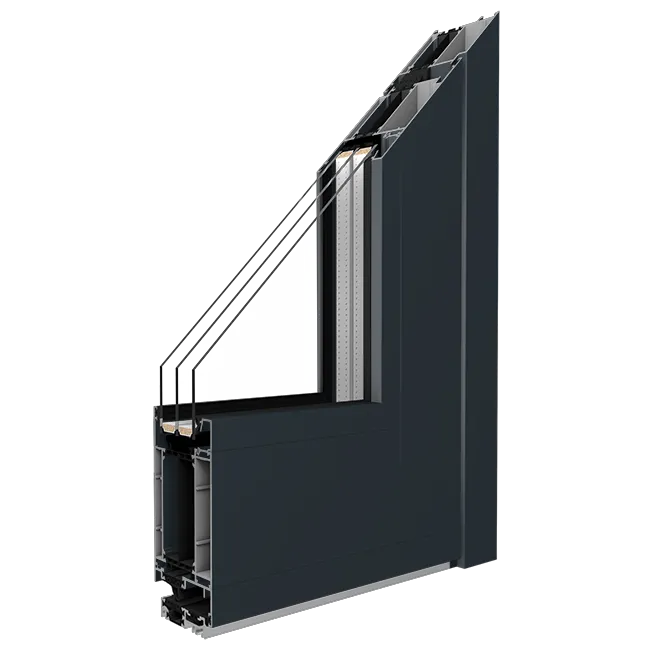

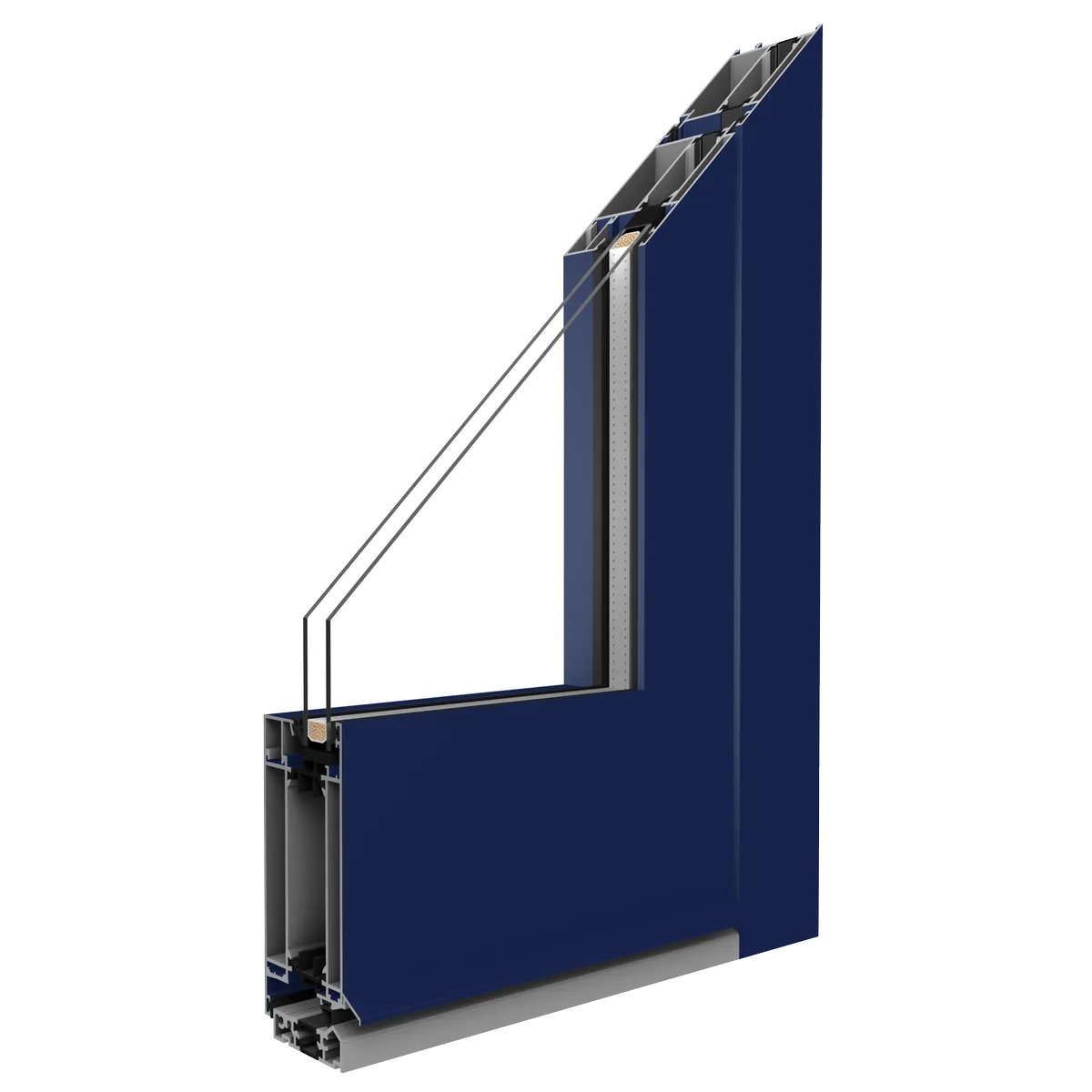

Technical data	SOFTLINE 68, 78, 88	IGLO 5	IGLO ENERGY	MB-70	MB-70HI	MB-86N SI
Number of chambers	Solid profile	5	7	3	3	3
Installation depth	68 mm	70 mm	82 mm	70 mm	70 mm	77 mm
Number of gaskets	2	2	2	2	2	2
Thermal transmittance	Softline 68 Uw = 1.1 W/(m²K)* Softline 78 Uw = 0.9 W/(m²K) Softline 88 Uw = 0.85 W/(m²K)* Glazing with argon and Swisspacer Ultimate spacer bar TMP4/U10/FL4/U10/TMP4 Glazing with argon and Swisspacer Ultimate spacer bar TMP4/U14/FL4/U14/TMP4 **Glazing with argon and Swisspacer Ultimate spacer bar TMP4/U18/FL4/U18/TMP4	Ud = 1,0 W/(m²K)* *Single-leaf door measuring 1,100x2,300 mm: glass with argon and the Swisspacer Ultimate TMP4/U14/FL4/U14/TMP4 spacer bar.	Ud = 0,8 W/(m²K)* *Single-leaf door measuring 1,100x2,300 mm: glass with argon and the Swisspacer Ultimate TMP4/U18/FL4/U18/TMP4 spacer bar.	Uw = 1,3 W/(m²K)* *Single-leaf door measuring 1,100x2,300 mm: glass with argon and the Swisspacer Ultimate TMP4/U18/FL4/U18/TMP4 spacer bar.	Ud = 1,2 W/(m²K)* *Single-leaf door measuring 1,100x2,300 mm: glass with argon and the Swisspacer Ultimate TMP4/U18/FL4/U18/TMP4 spacer bar.	Ud = 0,83 W/(m²K)* *Single-leaf door measuring 1,100x2,300 mm: for the WASHINGTON ZERO door model – using a both-side aligned panel.
Infills with a thickness of	24-32 mm glass	22.5-41 mm glass, batch panel 36 mm	22.5-49.5 mm glass, batch panel 36 mm	14.5-53.5 mm glass, batch panel 36 mm	14.5-53.5 mm glass, batch panel 36 mm	15-60 mm glass, batch panel 36 mm, overlay panel 77 mm
