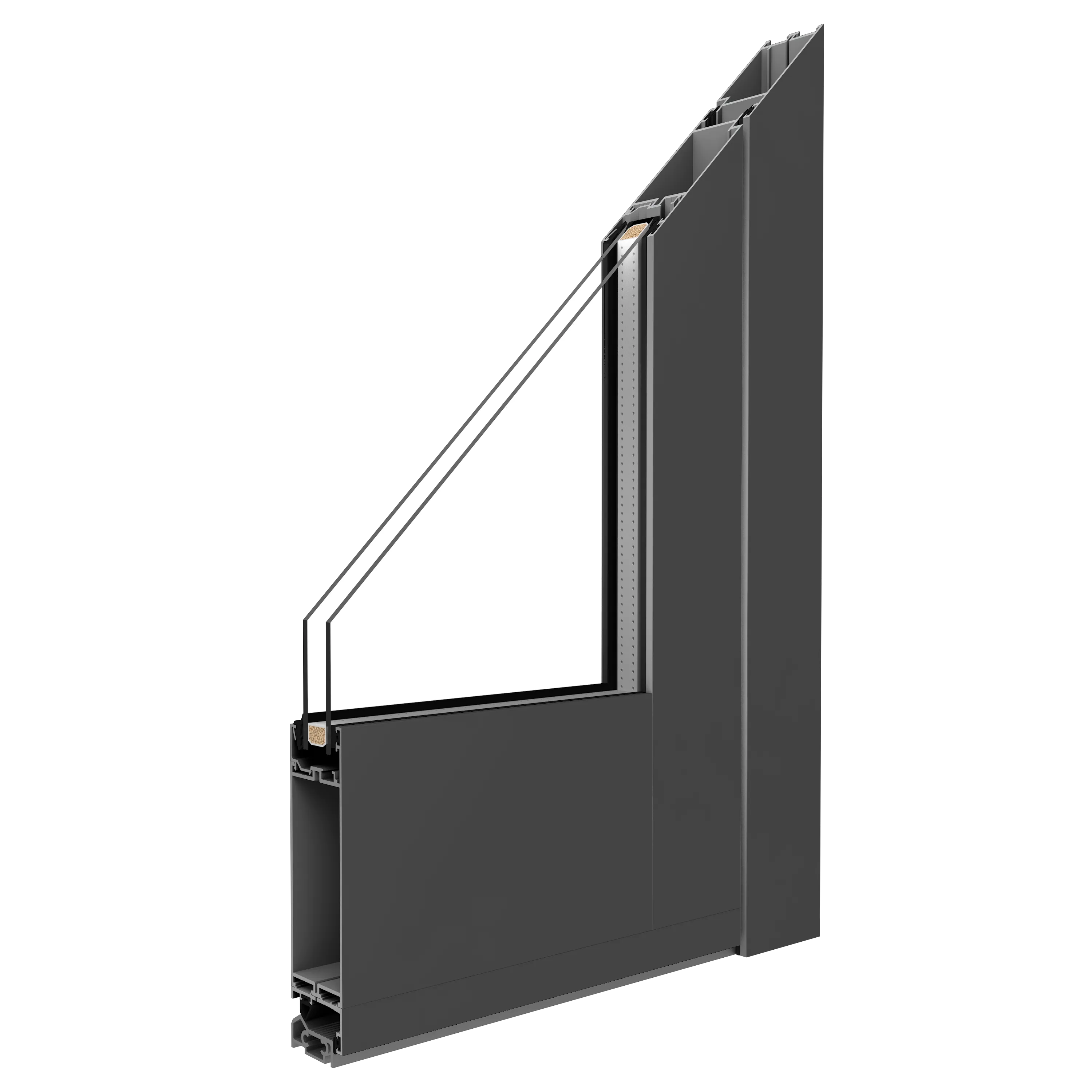

MB-45
System designed for indoors
MB-45
Due to the one-chamber profiles without a thermal break, the aluminium door in this system are mainly recommended for indoors, i.e. for areas that do not require high thermal insulation values such as partitions, vestibules, display windows, ticket box offices or showcases. As standard:
- 3-point espagnolette
- 3 two-winged hinges
- RAL 7016 and 9016 matt paint
- threshold
- aluminium handle
- mounting insert
Aluminium door colour range
Door structures
Glass
Additional options
(standard)
Dark brown RAL 8014
Black RAL 9005
Door handles and pull bars
Compare products
Technical data | MB-45 | MB-86N SI | MB-78EI Fire-Doors | MB-70HI | MB-79N SI+ | MB-70 |
---|---|---|---|---|---|---|
Number of chambers | 1 | 3 | 3 | 3 | 3 | 3 |
Installation depth | 45 mm | 77 mm | 78 mm | 70 mm | 70 mm | 70 mm |
Number of gaskets | 2 | 2 | 2 | 2 | 3 | 2 |
Thermal transmittance | — | Ud = 0,83 W/(m2K)* | Ud = 1,6 | Ud = 1,2 W/(m2K)* | Ud = 1,0 W/(m2K)*
| Uw = 1,3 W/(m2K)* |
Infills with a thickness of | 6-24.5 mm glass | 15-60 mm glass, batch panel 36 mm, overlay panel 77 mm | 15-60 mm glass | 14.5-53.5 mm glass, batch panel 36 mm | 14.5-53.5 mm glass, batch panel 36 mm |
