DUOLINE HS

Classic and modern

3
EPDM gaskets
from Ug = 0,5
GLASS THERMAL INSULATION
194/214/234 mm
INSTALLATION DEPTH
EPDM gaskets
3
GLASS THERMAL INSULATION
from Ug = 0,5
INSTALLATION DEPTH
194/214/234 mm

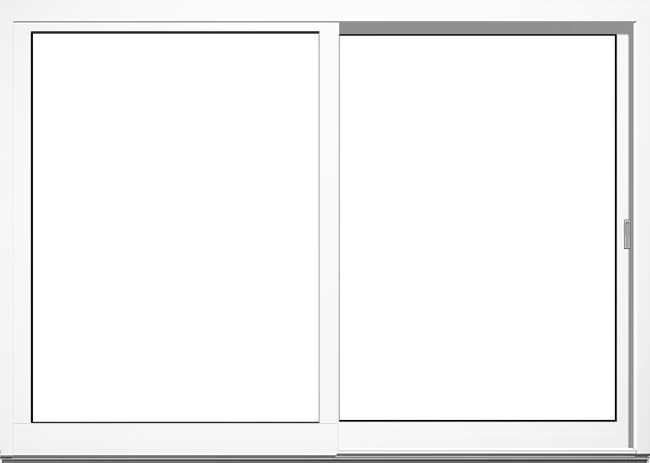

DUOLINE HS

Choose the colour that suits you from over 200 RAL colours for the aluminium part of the window and a dozen colours of opaque paints (covering the entire wood structure) and stain paints for the wooden part of the window.

Downloads

WINDOW AND TERRACE SYSTEMS ALUMINIUM / WOODEN / WOODEN-ALUMINIUM
Download

Colour range for the wood and aluminium terrace system

Choose the colour that suits you from over 200 RAL colours for the aluminium part of the window and a dozen colours of opaque paints (covering the entire wood structure) and stain paints for the wooden part of the window.
Indoor view
outdoor view
White Softline
Maghoni
Pine
Maghoni
Meranthi
Teak
Pine
Teak
Meranthi
Nut
Pine
Nut
Meranthi
Bright oak
Pine
Bright oak
Meranthi
Palisander
Pine
Palisander
Meranthi
Dark Oak
Pine
Dark Oak
Meranti
Choose the colour for the wooden part::
White Softline
Choose the colour for the aluminium part::
Orange brown
RAL-8023

Glass

DRUTEX, with over 30 years of experience in the production of composite glass, offers a very wide range of glass with which you can fit your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.

Wood and aluminium terrace systems

Create the terrace system that will meet your expectations.
Muntin bars
Muntin bars will add classic and timeless style to your windows and doors.
See all
Internal muntin bars
Internal muntin bars
Sizes: 8/18/26/45 mm
Internal muntin bars
Internal muntin bars
Sizes: 8/18/26/45 mm
Sandblasted glass
Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.
See all
Spacers
Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.
See all

Compare products

Technical dataDUOLINE HSDUOLINE HSIGLO-HSIGLO-HSIGLO-HS ALUCOVERIGLO-HS ALUCOVERMB-77HS HIMB-77HS HISOFTLINE HSSOFTLINE HS
Number of chambers

Solid profile

7

7

3

Solid profile

Installation depth

194/214/234 mm

194 mm

206 mm

174 mm

164/184/204 mm

Number of gaskets

3

2

2

2

2

Thermal transmittance

PINE 68 Uw=1,0 *1  /   PINE 78 Uw=0,85 *2  /  PINE 88 Uw=0,79 *3
MERANTI 68 Uw=0,96 *1  /  MERANTI 78 Uw=0,80 *2  /  MERANTI 88 Uw=0,75 *3

*1 for terrace system 3600x2450 mm with glass Ug=0,8 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*2 for terrace system 3600x2450 mm with glass Ug=0,6 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*3 for terrace system 3600x2260 mm with glass Ug=0,5 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method

 Uw = 0,71 W/(m2K)*

*for a structure measuring 2,700 x 2,300 with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

 Uw = 0,73 W/(m2K)*

*for a structure measuring 4000x2500mm with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

Uw = 1,0 W/(m2K)*

*for a structure measuring 4,000 x 2,200 with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

PINE 68 Uw=1,06 *1 /  PINE 78 Uw=0,89 *2  /  PINE 88 Uw=0,83 *3
MERANTI 68 Uw=1,02 *1 /   MERANTI 78 Uw=0,85 *2   /  MERANTI 88 Uw=0,79 *3

*1 for terrace system 3600x2450 mm with glass Ug=0,8 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*2 for terrace system 3600x2450 mm with glass Ug=0,6 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*3 for terrace system 3600x2260 mm with glass Ug=0,5 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method

Glass packages

DL68: 24-44mm
DL78: 24-50mm
DL88: 24-58mm

36-52 mm

36-52 mm

9-61 mm

SL68: 24-32mm
SL78: 24-44mm
SL88: 24-54mm
