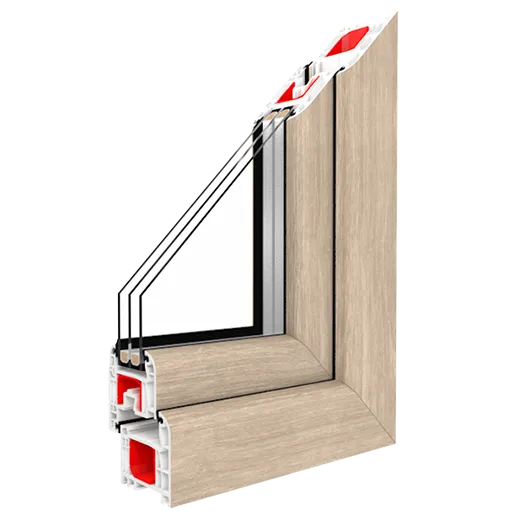

IGLO Light
Even more daylight
IGLO Light
This 5-chamber and original system stands out for its high aesthetic values and thin frame and sash profiles.
Compared to traditional systems, it has a 32% thinner movable post to improve the amount of daylight that reaches a room.AS STANDARD:
- MACO MULTI-MATIC KS fittings with 2 anti-theft strikers with Silber-Look anti-corrosion coating for long-lasting protection and smooth operation of the fitting
- sash lifter (lifting mishandling device - depending on window height)
- microventilation in tilt and turn windows
- hinge covers in 4 colours: white, silver, light brown, brown
- aluminium handle
- 2-glazed (1-chamber) units infilled with argon gas with Ug = 1.1 W/(m²K)
- Swisspacer Ultimate plastic warm frame - as a free elective option
- glass-pane spacer made of galvanised steel
- 2 EPDM gaskets in black (external and internal)
- gasket filling the lower fittings groove/li>
- 1.5 mm steel reinforcement for frame and sash (2mm for balcony door sash), „c”-shaped
- profile core in white
- 5-chamber PVC under-sill trim with gasket
- V-Perfect welding
PVC window colour range
915205-168
612505-167
851805-167
308105-167
3118076-167
3152009-167
2178001-167
2052089-167
3162002-167
725105-167
(7015) 02.11.71.000040-097
1137905-167
715505-167
887505-167
1600505-167
2178007-167
702305-167
(DB703) 1.0065002-097
2097013-167
703905-167
701205-167
703905-097
701205-097
02.20.71.000001-504700-047
701605-167
2115008-167
49240015-148
701605-097
F456-3081
9.1293001-195
02.20.01.000002-504700-047
F470-3001
Jet black
02.12.17.000001-195
Glass
Additional options
Sizes: 27/45/65 mm
Sizes: 8/18/26/45 mm
Handles
Compare products
Technical data | IGLO Light | Iglo EXT | IGLO ENERGY ALUCOVER | IGLO EDGE | IGLO Energy | Iglo Premier | IGLO Energy Classic | IGLO 5 | IGLO 5 Classic |
---|---|---|---|---|---|---|---|---|---|
Number of chambers | 5 | 5 | 7 | 7 | 7 | 5 | 7 | 5 | 5 |
Installation depth | 70 mm | 70 mm | 82 mm | 82 mm | 70 mm | 82 mm | 70 mm | 70 mm | |
Number of gaskets | 2 | 2 | 3 | 3 | 3 | 2 | 3 | 2 | 2 |
Thermal transmittance | Uw = 1,0 W/(m2K)* | Uw = 0,89 W/(m2K)* | Uw = 0,76 W/(m2K)* *For a window measuring 1,230x1,480 mm – calculation method = 0.76 W/(m2K) with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,66 W/(m2K)* | Uw = 0,79 W/(m2K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.79 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,89* W/(m2K)* *For a window measuring 1,230x1,480 mm – calculation method = 0.89 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,81 W/(m2K)* | Uw = 0,94 W/(m2K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.94 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,94 W/(m2K)* *For a window measuring 1,230x1,480 mm – CSI in the Czech Republic Uw = 0.94 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar. |
Glass packages | 24-40 mm | 24-40 mm | 24-48 mm | 48-58 mm | 24-48 mm | 24-40 mm | 24-52 mm | 24-40 mm | 24-40 mm |
Sound insulation | dB = 34 | — | - | — | dB = 37-46 | — | dB = 36-42 | dB = 36-44 | dB = 34-42 |
